Relay / Harness Fan Combo Pack with 40A 5-Pin SPDT Relay & 4-Pin Socket Harness

Sale price
$39.99
Regular price
$51.99

Free Shipping Over $99

American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Buy together & save

Relay / Harness Fan Combo Pack with 40A 5-Pin SPDT Relay & 4-Pin Socket Harness
Relay / Harness Fan Combo Pack with 40A 5-Pin SPDT Relay & 4-Pin Socket Harness
Relay / Harness Fan Combo Pack with 40A 5-Pin SPDT Relay & 4-Pin Socket Harness

Relay / Harness Fan Combo Pack with 40A 5-Pin SPDT Relay & 4-Pin Socket Harness

Sale price
$39.99
Regular price
$51.99

Product information

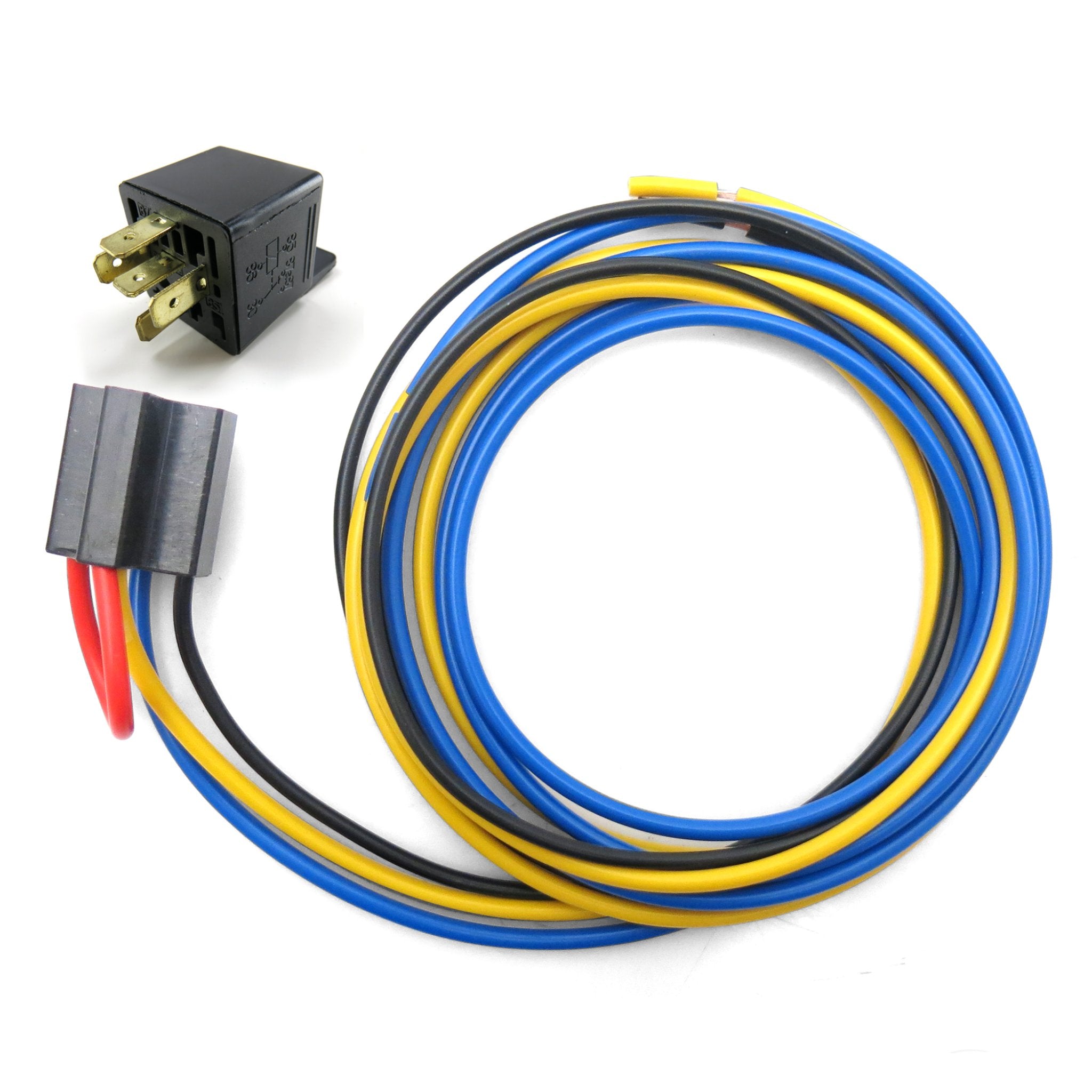

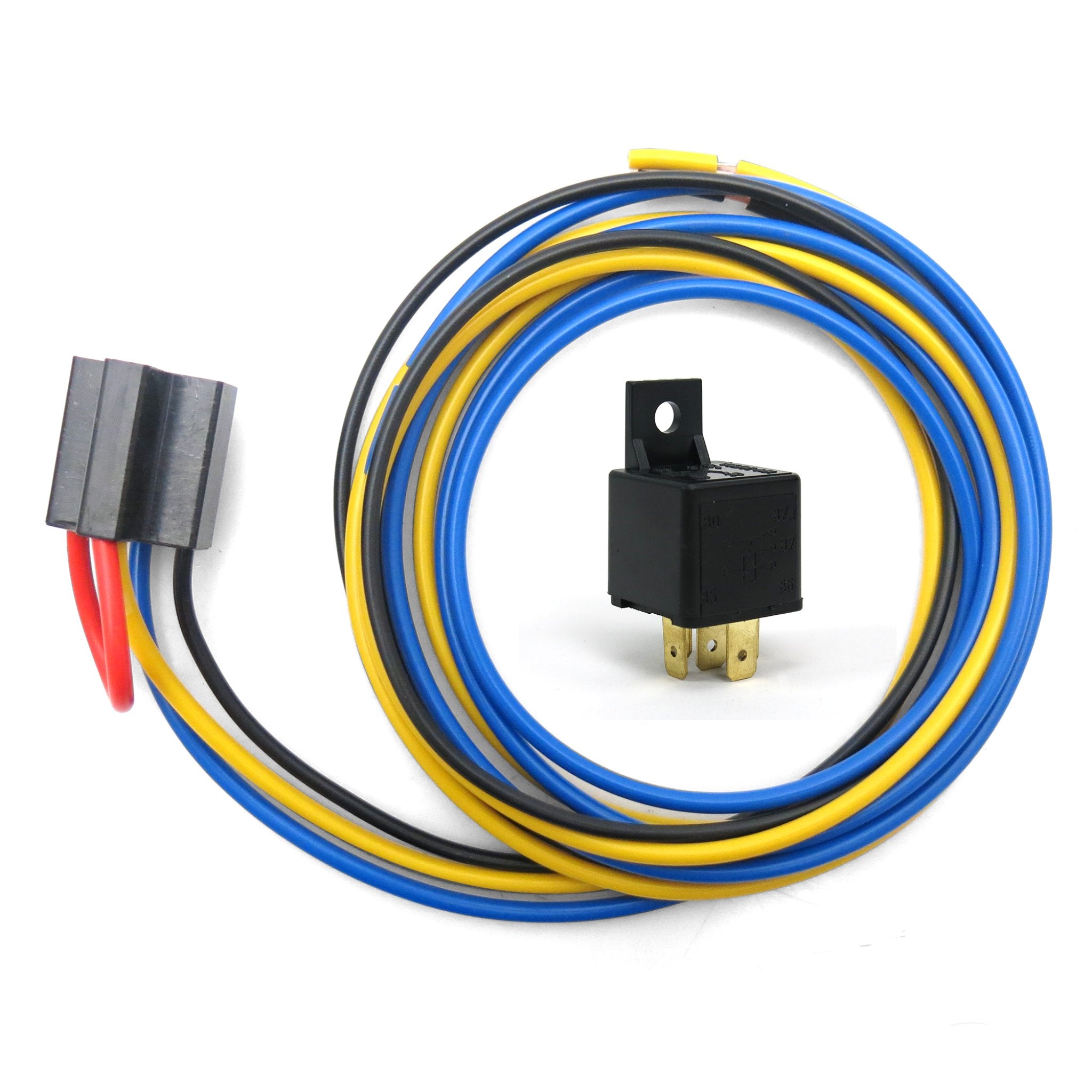

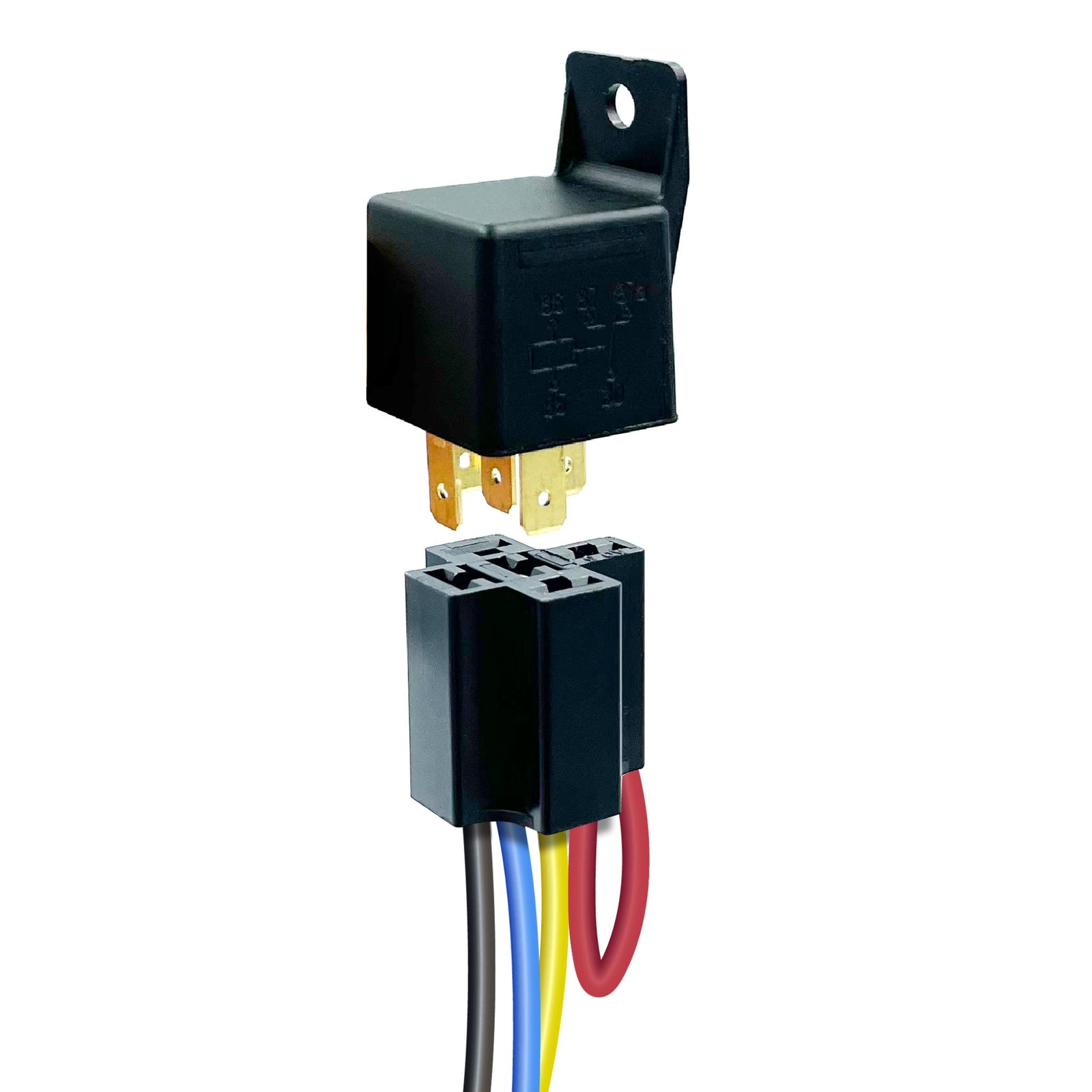

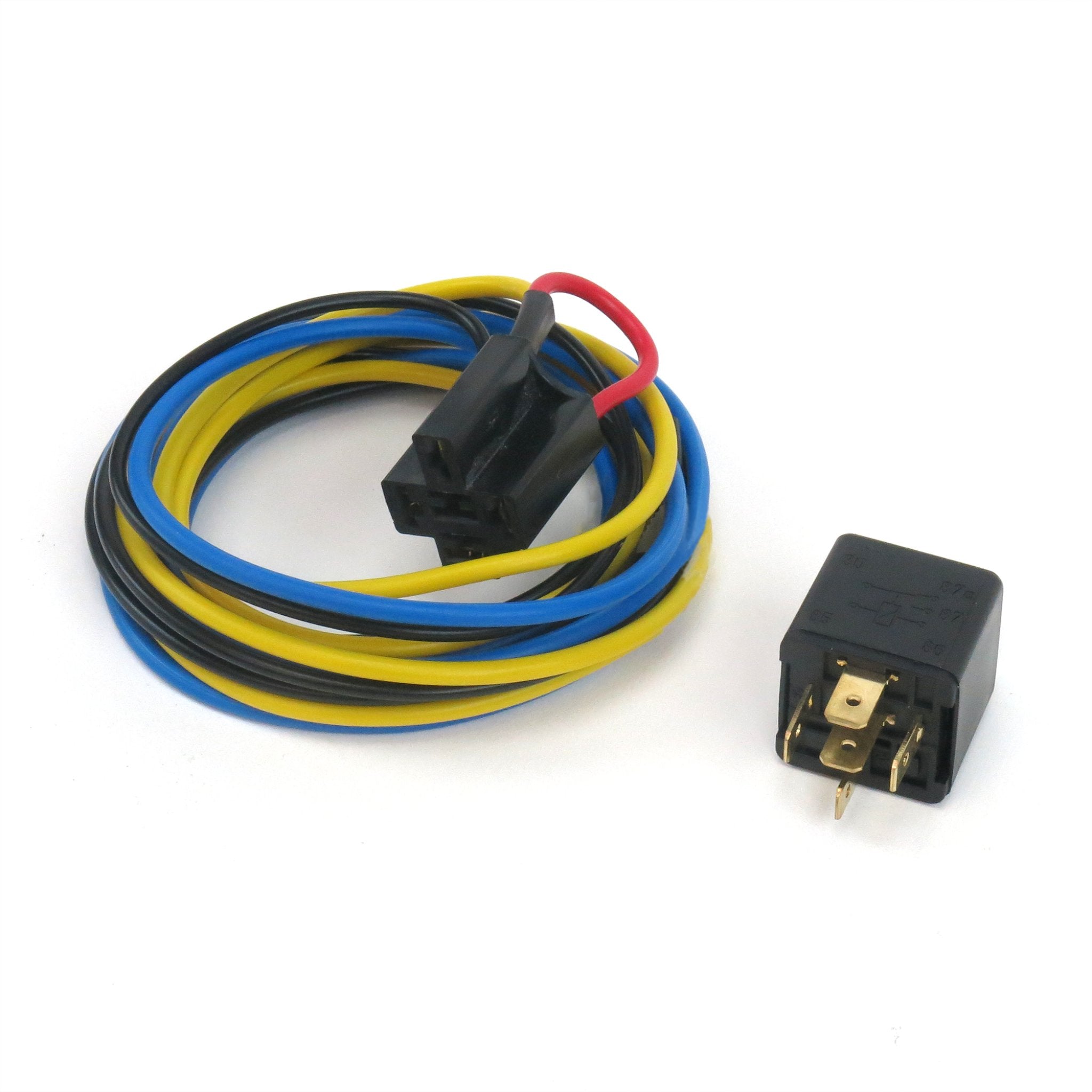

Zirgo's fan relay kit makes installing your new Zirgo fan simple! The kit includes a heavy-duty relay and a 48" relay socket with color-coded wires. Simply plug the relay into the Plug n Play relay socket, and you’ve just saved yourself hours of wiring time.

KIT INCLUDES:
- 40 Amp 5-Pin SPDT 12 Volt Relay
- 4-Pin 12 Volt Socket Harness Connector

RELAY FEATURES:
Zirgo's heavy duty 40-amp automotive relays are your best choice for all your 12V needs. Designed to handle both normal and high automotive currents, Zirgo's single pole double throw 40-amp relays will never get stuck or short out.

HARNESS FEATURES:
Our 48” extra long relay socket harness plug gives you the extra wire you need for a quick and clean installation. No more need to splice wires! Heavy gauge wire. Up to 30 amps rush and 20 amps continuous power. Perfect for most 12 Volt DC accessories that do not need a normally closed (NC) circuit.

Includes Free Live USA Technical Support, and a Limited Lifetime Warranty.


Application :: Cooling Fans
---------- :: Relay
Peak Amps :: 40
Voltage :: 12v DC
Terminals :: 5
Terminal Type :: Blade
Retention Spring :: 2X
Contact Style :: SPDT (Single Pole, Double Throw)
Contact :: Brass
Designed For :: Heavy Duty Operation
Quality :: Heavy Duty
Power Consumption :: Low
Low Heat :: Yes
Sealed Case :: Water Resistant
Compact Size :: Yes
Relay Height :: 2.125" (54mm)
Relay Height without Mounting Tab :: 1.5" (38mm)
Relay Width :: 1.125" (29mm)
Relay Depth :: 1.25" (32mm)
Tab Height :: 0.625" (19mm)
Mounting Style :: Tab Hole .25" (6.3mm)
Terminal Height :: 0.432" (11mm)
Terminal Width :: 0.250" (6mm)
---------- :: Harness Socket
Wires :: 4
Leads :: 48" (122cm)
Relay Socket :: 1
Voltage :: 12V
Amps Rush :: 30 Amps
Amps Continuous Power :: 20 Amps
Wires :: Color Coded
Wire Gauge :: 14 Gauge
Application :: 12V DC Accessories That Do Not Need The Normally Closed Circuit
Base Material :: ABS Plastic
Terminal Material :: Zinc Coated
Wire Material :: OFC Copper
---------- :: Other
Installation :: Easy with Basic Tools
Instructions :: Detailed Instructions
Warranty :: Limited Lifetime Warranty

Get Instructions
Item ID SKU UPC
ZIRZFRA 315362
Relay 40 Amp Included
Relay Terminal Size 1/4 inch Blade Type
Plug n Play Harness Included
Harness Length 48 in
Harness Wire 14ga
Number of Wires on Harness 4

Compare with similar items

Relay / Harness Fan Combo Pack with 40A 5-Pin SPDT Relay & 4-Pin Socket Harness
This item Relay / Harness Fan Combo Pack with 40A 5-Pin SPDT Relay & 4-Pin Socket Harness
Heavy Duty 40A 12V DC 5-Pin SPDT Automotive Relay with Mounting Tab Universal
Heavy Duty 40A 12V DC 5-Pin SPDT Automotive Relay with Mounting Tab Universal
Electric Fan Relay Harness Pack with 40A Relay, Plug-N-Play Harness & Cable Ties
Electric Fan Relay Harness Pack with 40A Relay, Plug-N-Play Harness & Cable Ties
40 Amp Relay w/ Harness and Circuit Breaker- Keep It Clean- Plug-N-Play 12 Volt
40 Amp Relay w/ Harness and Circuit Breaker- Keep It Clean- Plug-N-Play 12 Volt
Price
$39.99
$24.95
$77.95
$44.95
Relay
40 Amp Included
40 Amp Included
40 Amp Included
40 Amp Included
Relay Terminal Size
1/4 inch Blade Type
1/4 inch Blade Type
1/4 inch Blade Type
1/4 inch Blade Type
Plug n Play Harness
Included
Not Included
Included
Included
Harness Length
48 in
51 in
12 in
Harness Wire
14ga
14ga, 18ga
14ga, 18ga
Wires on Harness
4
4
5
