ZIRGO HIGH PERFORMANCE COOLING SYSTEM for TOYOTA TUNDRA
This kit contains everything you need to install and control the Zirgo fan in your Toyota Tundra. You can control what temperature turns on the fan by adjusting the dial on the thermostat. Installation is a breeze with our included Plug-N-Play Relay and Fan Harnesses.
Zirgo's Cooling Fans Represent The Ultimate in Cooling Technology. Zirgo high-torque fan motors feature sealed ball bearings and fully balanced blades which ensure low noise levels, smooth operation and a long life.

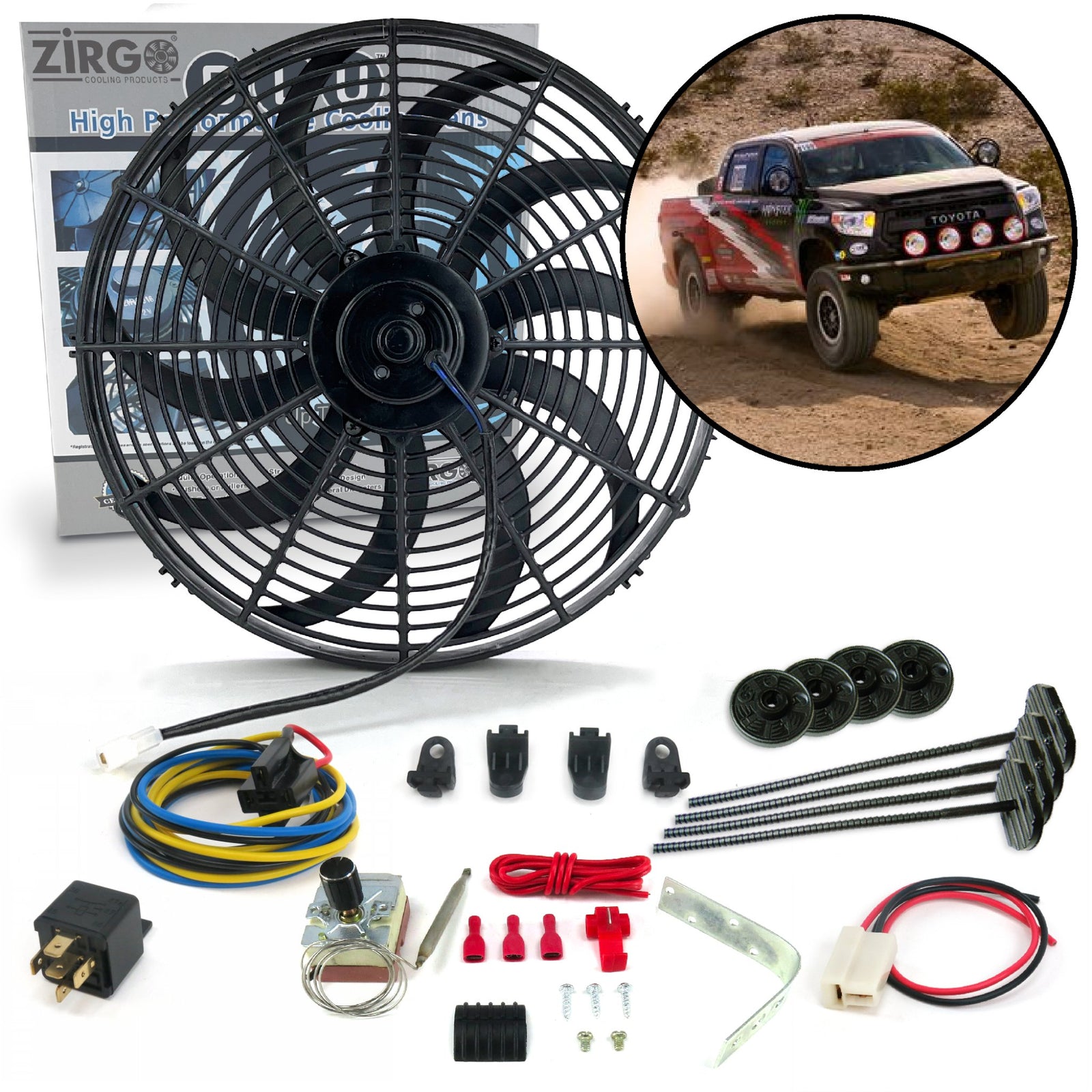

INCLUDES:
- 16" 3000 fCFM High Performance Curved Blade Fan (1)
- Fan Feet Mounting Brackets (4)
- Adjustable Temperature Sensor/Switch (1)
- 40 Amp Relay (1)
- Relay Harness (1)
- SureLoc Fan Ties (4)
- Fan Harness
FAN FEATURES:
- 3000 fCFM
- Black Finish
- S Curved Balanced Blades
- ULTRA SLIM Profile
- Sealed Ball Bearing High-Torque Motor
- Quiet Motor
- Reversible
- 6 mounting Location Options
- 4 Mounts/Feet
ADJUSTABLE TEMPERATURE SWITCH FEATURES
⁃ Adjustable
⁃ Measures Fluid Temperature
⁃ Range = 180-240 Degrees (82.2-115.5 C)
⁃ Mounting Bracket Included
⁃ Water-Neck Leak Proof Hose Gasket
⁃ Hardware Included
⁃ Wiring Included
⁃ Accuracy to 5 Degrees
To ensure maximum performance, all Zirgo fans offer reversible blades allowing them to operate as pushers or pullers. Zirgo's four foot mounting brackets & ULTRA SLIM PROFILE ensures easy placement for maximum performance on your vehicles cooling system.
Zirgo's unique revolutionary motor designs offer low amp draw and are easily removed from the cage which provides trouble-free future performance upgrades.
Zirgo's Ultra Thin Design and Unmatchable Performance, along with a Limited Lifetime Warranty, make Zirgo the Optimal Fan for Performance Vehicles. We also offer Detailed Instructions and FREE LIVE USA Technical Support.
Let Zirgo high performance cooling fans cool you down, when you heat up!
---------- :: ZIRGO PERFORMANCE FAN KIT - TOYOTA TUNDRA
Blade Size :: 16"
Blade Style :: Curved "S" Balanced Blades
Ultra Slim Profile :: Yes
Motor :: Sealed Ball Bearing High-Torque
fCFM :: 3000
Mounts/Feel :: 4
Total Thickness :: 3.5"
Height/Width :: 16.5"
Foot to Foot Max Width :: 17.75” Hole to Hole
Quiet Motor :: Yes
Thin Design :: Yes
---------- :: ADJUSTABLE TEMPERATURE SWITCH
Range :: 180-240 Degrees (82.2-115.5 C)
Mount :: Water-Neck or Between Radiator Fins
Case :: Metal
Adjustable :: Yes
Hardware :: Included
---------- :: RELAY
Peak Amps :: 40
Style :: SPDT (Single Pole, Double Throw)
Terminals :: 5
Terminal Type :: Blade
Contact :: Brass
Power Consumption :: Low
Low Heat :: Yes
Water Resistant :: Yes (Sealed Case)
Harness :: Included
---------- :: OTHER
Fan Ties :: SureLoc - Included
Fan Harness :: Included
Warranty :: Limited Lifetime Warranty
Get Instructions
|
Item ID |
SKU |
UPC |
|
ZIRZFK20 |
10360 |
802269143074 |
fCFM
3,000
Blade Style
Curved S Blades
Blade Size
16 in
Height / Width
16.5 in
Total Thickness
3.5 in
Foot to Foot Max Width
17.75 in
Finish
Black
Foot Mounts Included
4 per Fan
Fan Quantity
Single (1)
Temperature Switch
Adjustable
Sensor Type
Analog Probe
Turns On
Between 180 - 240 Degrees Fahrenheit
Accuracy
5 Degrees
Temp Switch Mounting Bracket
Included
Relay
40 Amp Included
Plug n Play Harness
Included
Harness Length
12 in
Harness Wire
14ga, 18ga
Number of Wires on Harness
5
