REV UP, & COOL DOWN! Zirgo's Cooling Fans Represent The Ultimate in Cooling Technology. Zirgo high-torque fan motors feature sealed ball bearings and fully balanced blades which ensure low noise levels and a long life of smooth operation.

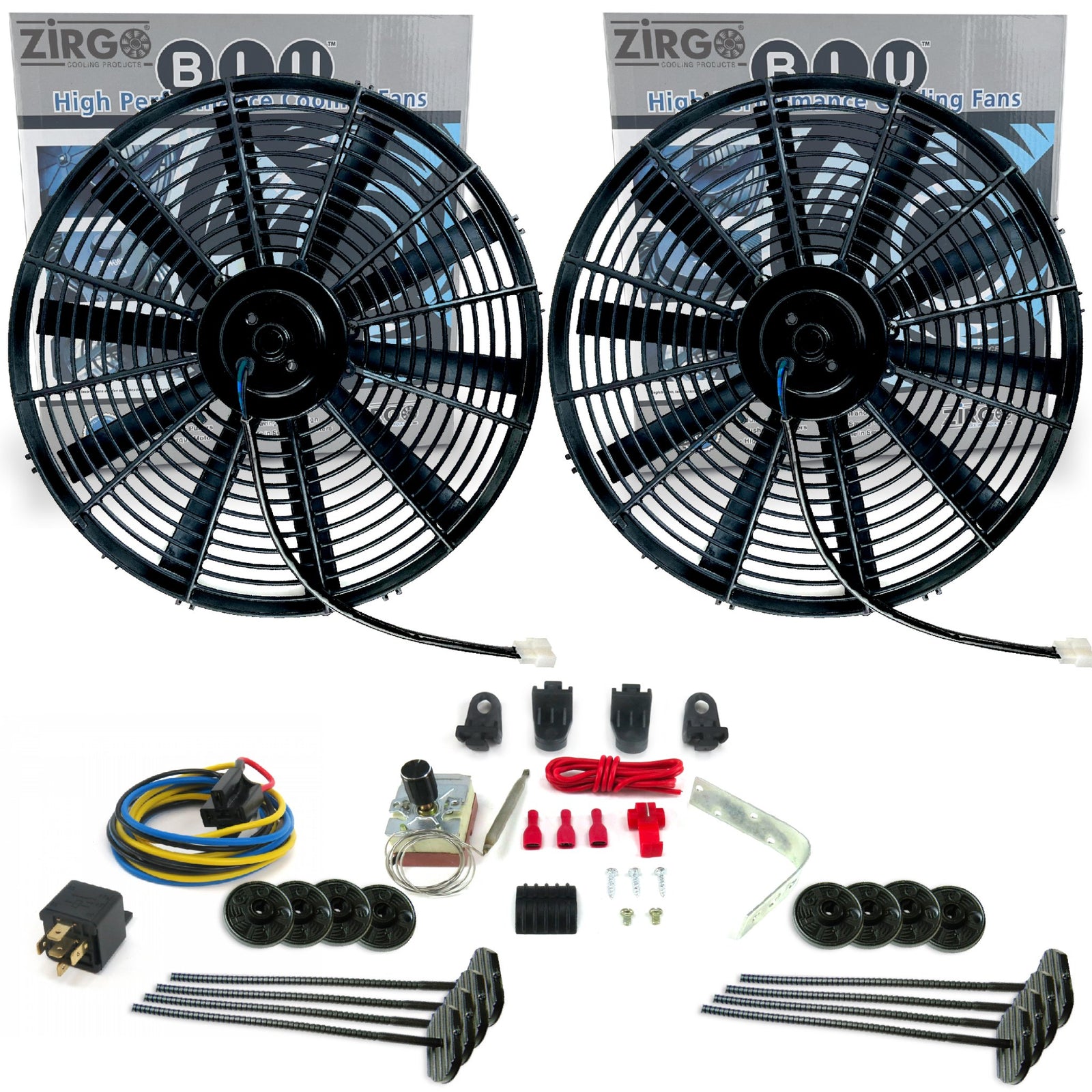

ZIRGO SUPER COOL PACK
This kit contains everything you need to install and control your Zirgo fan! Ideal for converting from a mechanical fan to enhance horsepower and efficiency. Also works great for oil, condenser, and transmission cooling. Works anywhere you need cooling.

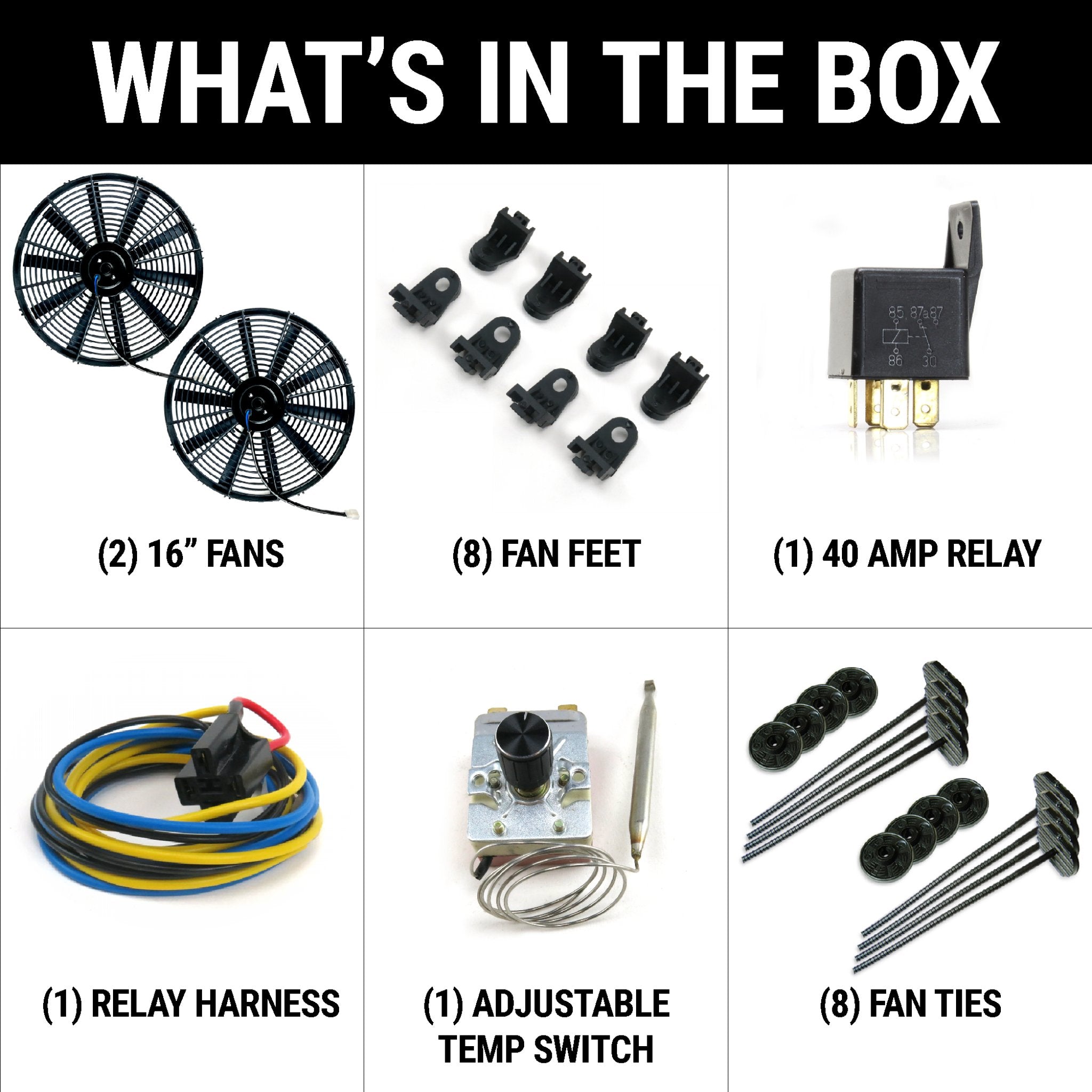

INCLUDES:
- 16" 2803 fCFM High Performance Straight Blade Fan (2)
- Fan Feet Mounting Brackets (4 Per Fan)
- Brass Analog Input Sensor/Switch - 180 Degree = On (1)
- 40 Amp Relay (1)
- Relay Harness (1)
- SureLoc Fan Ties (4 Per Fan)
FAN FEATURES:
- 2803 fCFM
- 55w 15amp constant 27amp peak (startup)
- Straight Balanced Blades
- ULTRA SLIM Profile
- Sealed Ball Bearing High-Torque Motor
- Quiet Operation
- Mounts/Feet - 4
ADJUSTABLE TEMPERATURE SWITCH FEATURES
⁃ Adjustable
⁃ Measures Fluid Temperature
⁃ Range = 180-240 Degrees (82.2-115.5 C)
⁃ Mounting Bracket Included
⁃ Water-Neck Leak Proof Hose Gasket
⁃ Hardware Included
⁃ Wiring Included
⁃ 5 Degrees Accuracy
To ensure maximum performance, all Zirgo fans offer reversible blades allowing them to operate as pushers or pullers. Zirgo's four foot mounting brackets & ULTRA SLIM PROFILE ensures easy placement for maximum performance on your vehicles cooling system.
Zirgo's unique revolutionary motor designs offer low amp draw and are easily removed from the cage which provides trouble-free future performance upgrades.
Zirgo's Ultra Thin Design and Unmatchable Performance, along with a Limited Lifetime Warranty, make Zirgo the Optimal Fan for Performance Vehicles. We also offer Detailed Instructions and FREE LIVE USA Technical Support.
Let Zirgo high performance cooling fans cool you down, when you heat up!
---------- :: TWIN 16" ZIRGO ADJUSTABLE PERFORMANCE FAN KIT
# of Fans :: 2
Blade Style :: 16" Straight Balanced Blades
Ultra Slim Profile :: Yes
Motor :: Sealed Ball Bearing High-Torque
fCFM :: 2803
Mounts/Feel :: 4
Total Thickness :: 3.5"
Height/Width :: 16.5"
Foot to Foot Max Width :: 17.75” Hole to Hole
Quiet Motor :: Yes
Thin Design :: Yes
---------- :: ADJUSTABLE TEMPERATURE SWITCH
Range :: 180-240 Degrees (82.2-115.5 C)
Mount :: Water-Neck or Between Radiator Fins
Case :: Metal
Adjustable :: Yes
Hardware :: Included
---------- :: RELAY
Peak Amps :: 40
Style :: SPDT (Single Pole, Double Throw)
Terminals :: 5
Terminal Type :: Blade
Contact :: Brass
Power Consumption :: Low
Low Heat :: Yes
Water Resistant :: Yes (Sealed Case)
Harness :: Included
---------- :: OTHER
Fan Ties :: SureLoc - Included
Instructions :: Detailed Instructions
Warranty :: Limited Lifetime Warranty
Get Instructions
|
Item ID |
SKU |
UPC |
|
ZIRZFK216N2 |
10299 |
802269142749 |
fCFM
2,803
Blade Size
16 in
Height / Width
16.5 in
Total Thickness
3.5 in
Foot to Foot Max Width
17.75 in
Finish
Black
Foot Mounts Included
4 per Fan
Fan Quantity
Dual (2)
Temperature Switch
Adjustable
Sensor Type
Analog Probe
Turns On
Between 180 - 240 Degrees Fahrenheit
Accuracy
5 Degrees
Temp Switch Mounting Bracket
Included
Relay
40 Amp Included
Plug n Play Harness
Included
Harness Length
12 in
Harness Wire
14ga, 18ga
Number of Wires on Harness
5
