REV UP, & COOL DOWN! Zirgo's Cooling Fans Represent The Ultimate in Cooling Technology. Zirgo high-torque fan motors feature sealed ball bearings and fully balanced blades which ensure low noise levels and a long life of smooth operation.

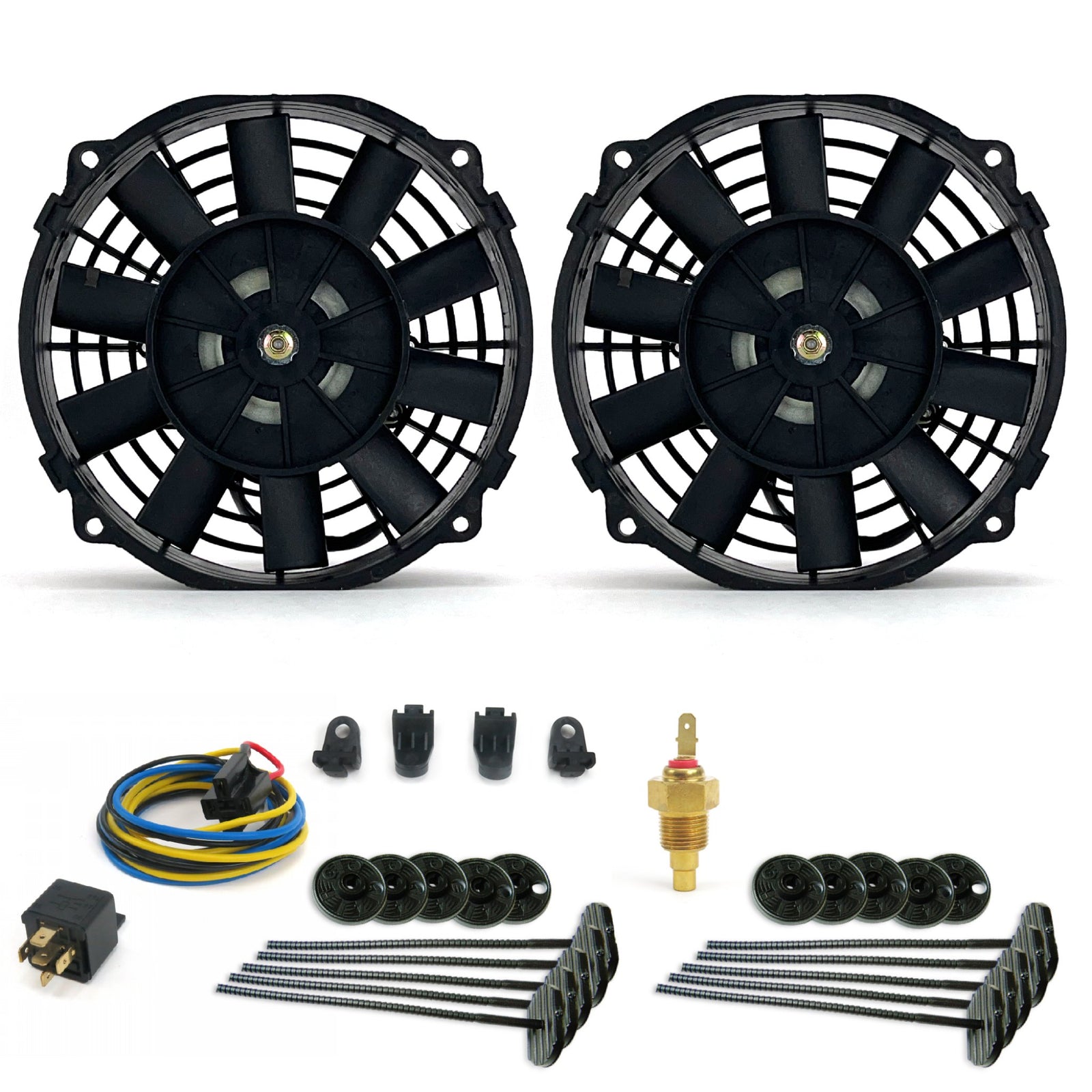

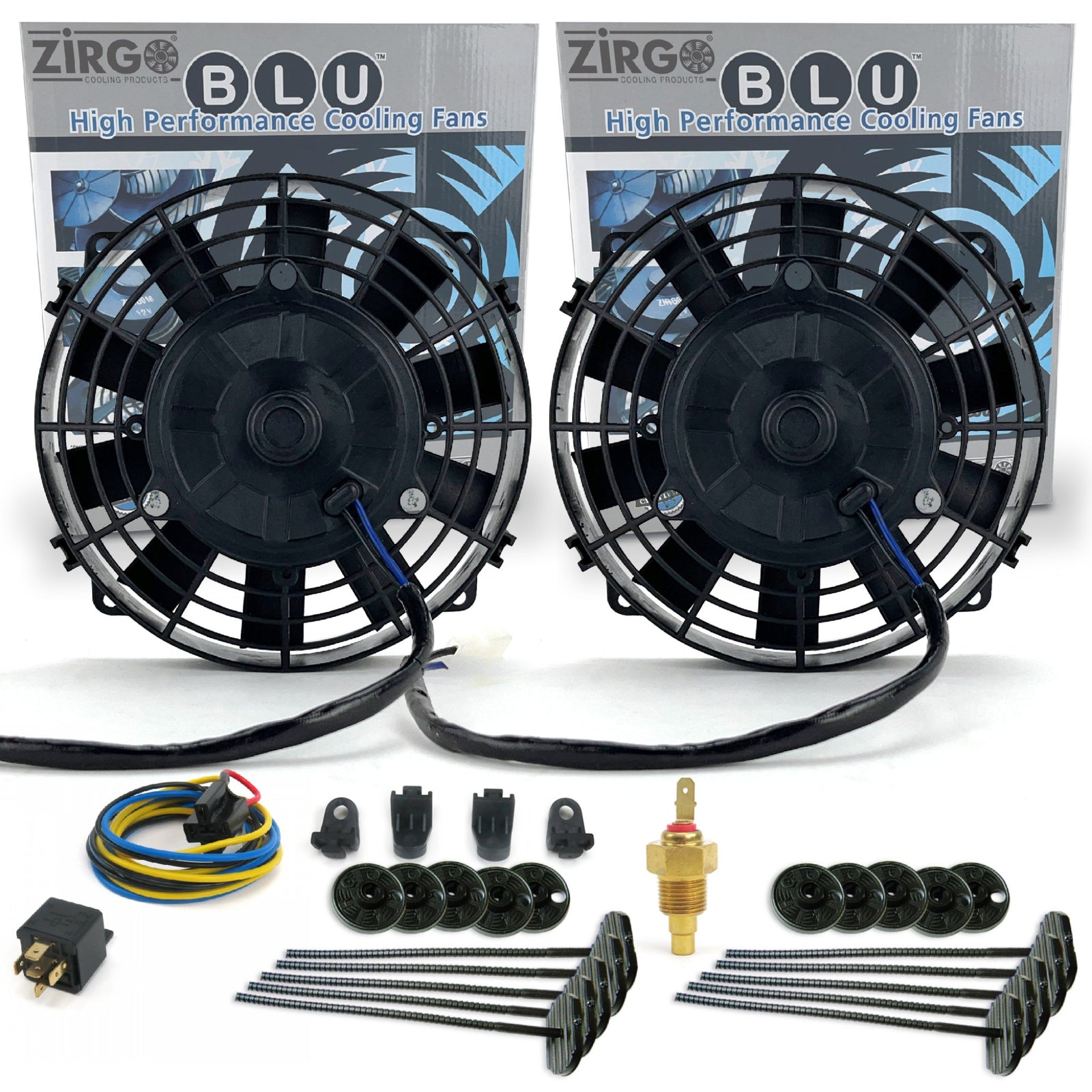

ZIRGO SUPER COOL PACK
This kit contains everything you need to install and control your Zirgo fan! Ideal for converting from a mechanical fan to enhance horsepower and efficiency. Also works great for oil, condenser, and transmission cooling. Works anywhere you need cooling.

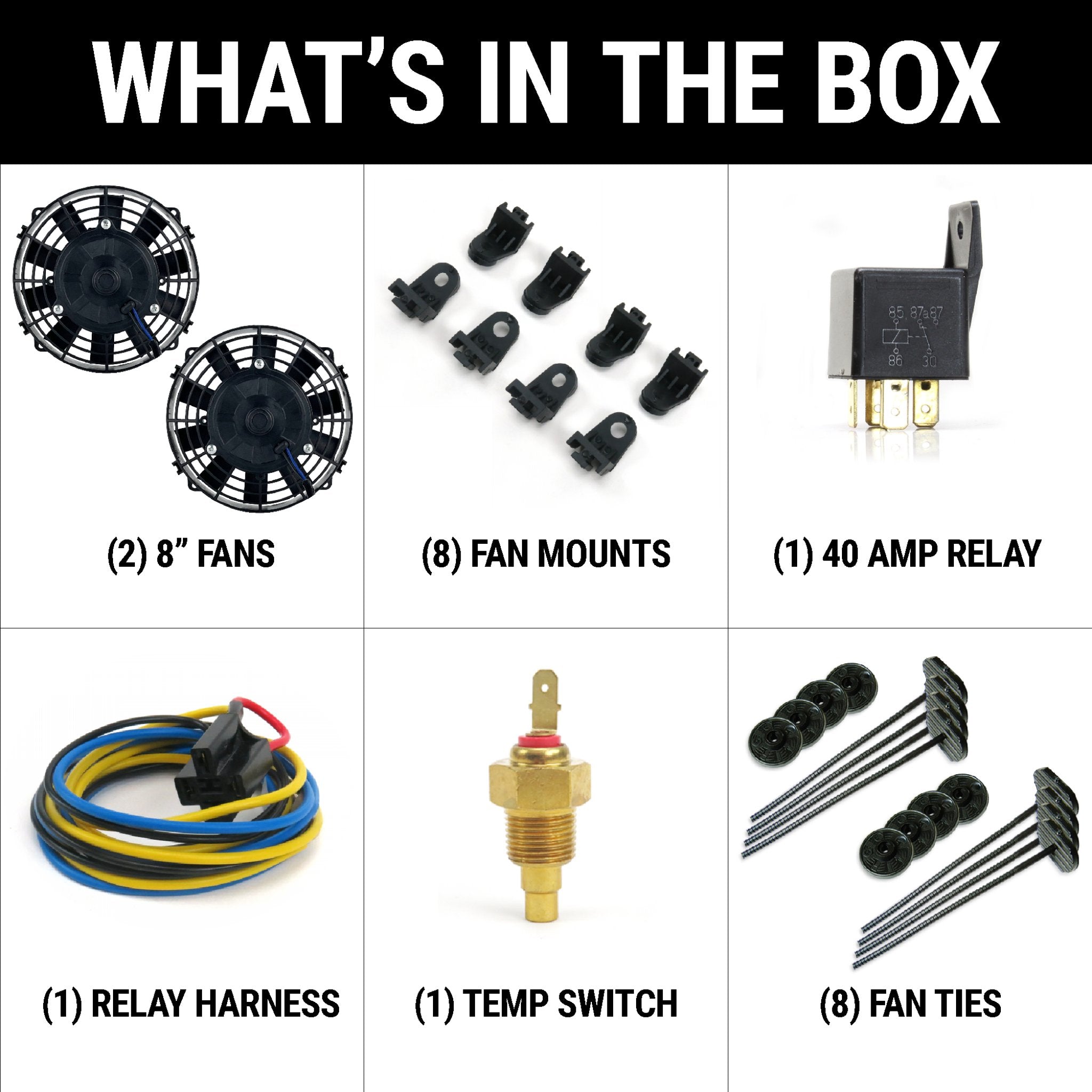

INCLUDES:
- 8" 605 fCFM High Performance Straight Blade Fans (2)
- Fan Feet Mounting Brackets (8)
- Brass Analog Input Sensor/Switch - 180 Degree = On (1)
- 40 Amp Relay (1)
- Relay Harness (1)
- SureLoc Fan Ties (8)
FAN FEATURES:
- 605 fCFM
- 55w 15amp constant 27amp peak (startup)
- Straight Balanced Blades
- ULTRA SLIM Profile
- Sealed Ball Bearing High-Torque Motor
- Quiet Operation
- Mounts/Feet - 4
SENSOR/SWITCH FEATURES
- Analog Input Sensor
- 3/8” NPT Sensor Mount
- 1/4” Blade Terminal
- Brass Body
- 180/On
To ensure maximum performance, all Zirgo fans offer reversible blades allowing them to operate as pushers or pullers. Zirgo's four foot mounting brackets & ULTRA SLIM PROFILE ensures easy placement for maximum performance on your vehicles cooling system.
Zirgo's unique revolutionary motor designs offer low amp draw and are easily removed from the cage which provides trouble-free future performance upgrades.
Zirgo's Ultra Thin Design and Unmatchable Performance, along with a Limited Lifetime Warranty, make Zirgo the Optimal Fan for Performance Vehicles. We also offer Detailed Instructions and FREE LIVE USA Technical Support.
Let Zirgo high performance cooling fans cool you down, when you heat up!
---------- :: TWIN 8" ZIRGO PERFORMANCE FAN KIT
Blade Size :: 8"
Blade Style :: Straight Balanced Blades
# of Fans :: 2 Included
Motor :: Sealed Ball Bearing High-Torque
fCFM :: 605
Mounts/Feel :: 4 Per Fan = 8
Total Thickness :: 2.5"
Height/Width :: 8.25"
Foot to Foot Max Width :: 8.625” Hole to Hole
Quiet Motor :: Yes
Thin Design :: Yes
---------- :: SENSOR / SWITCH
Analog :: Yes
Temp :: 180 Degrees = ON
Mount :: 3/8" NPT
Contact :: 1/4" Blade terminal
Material :: Brass
---------- :: RELAY
Peak Amps :: 40
Style :: SPDT (Single Pole, Double Throw)
Terminals :: 5
Terminal Type :: Blade
Contact :: Brass
Power Consumption :: Low
Low Heat :: Yes
Water Resistant :: Yes (Sealed Case)
Harness :: Included
---------- :: OTHER
Fan Ties :: SureLoc - Included
Instructions :: Detailed Instructions
Warranty :: Limited Lifetime Warranty
Get Instructions
|
Item ID |
SKU |
UPC |
|
ZIRZFK18N2 |
10261 |
802269142589 |
fCFM
605
Blade Style
Straight Balanced Blades
Blade Size
8 in
Height / Width
8.25 in
Total Thickness
2.5 in
Foot to Foot Max Width
8.63 in
Finish
Black
Foot Mounts Included
4 per Fan
Fan Quantity
Dual (2)
Temperature Switch
Fixed
Sensor Type
Analog
Turns On
At 180 Degrees Fahrenheit
Accuracy
4 Degrees
Temp Switch Mounting Bracket
Not Included
Relay
40 Amp Included
Plug n Play Harness
Included
Harness Length
12 in
Harness Wire
14ga, 18ga
Number of Wires on Harness
5
